Nta

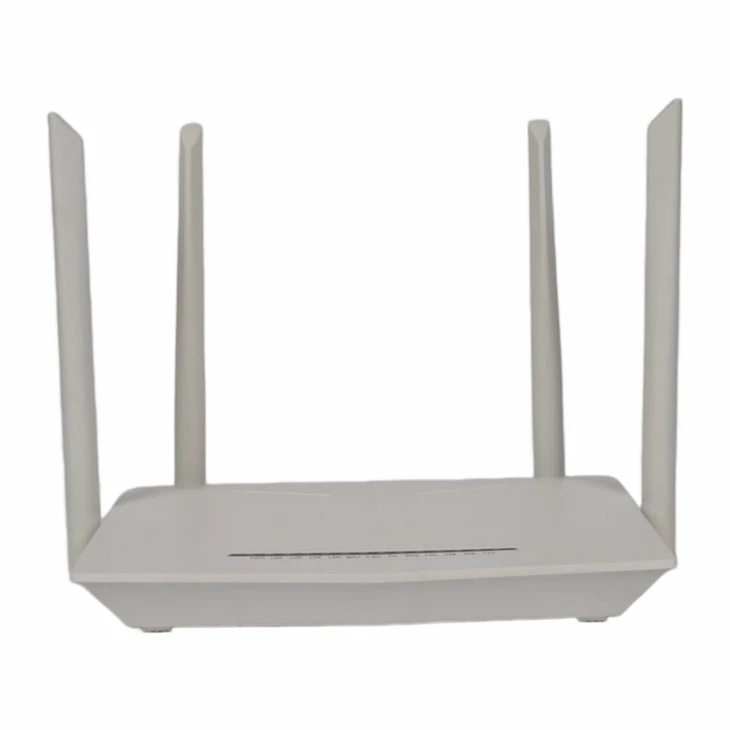

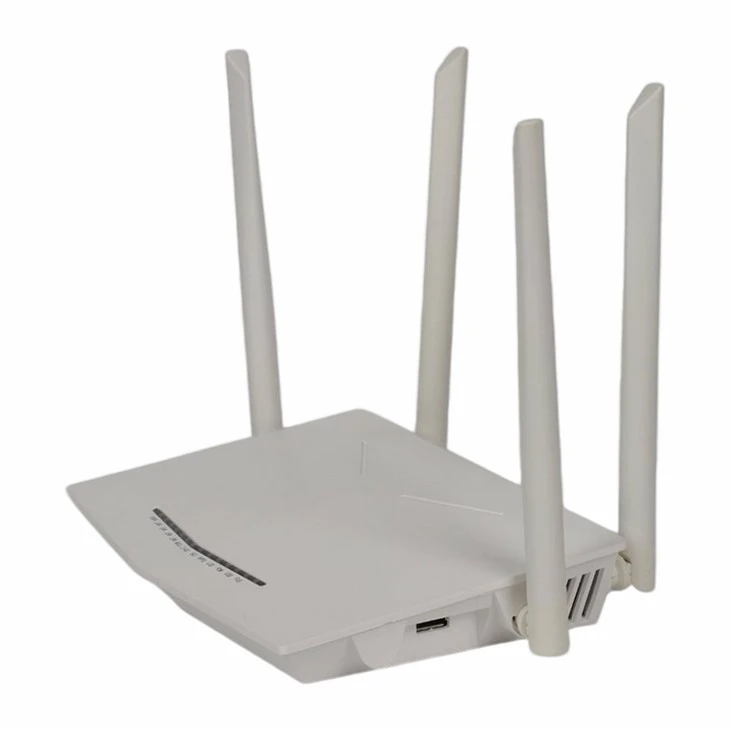

DGP -C2711TR

1. GPON Technology rau Great Bandwidth

Muab kev ceev loj heev rau kev sib txuas dav dav uas tuaj yeem muab cov neeg siv nrog blazing-Internet ceev.

2. Triple Play Applications

Qhov no gpon wi-fi modem Muab ntau yam kev pabcuam los ntawm ib qho kev sib txuas siab - nrawm nrawm rau kwj cov ntaub ntawv, suab, thiab siab - txhais cov kev pabcuam video rau hauv tsev.

3. Tus neeg siv -tus phooj ywg GUI Web Configuration

Qhov no gpon wi-fi modem yog lub davhlau ya nyob twg kho qhov muag uas yog tsom rau txhua tus neeg siv khoom uas xav tau ntau qhov chaw nres nkoj thiab siab -cov ntaub ntawv ceev sib cuam tshuam hauv tus nqi- tsev nyob sab hauv. Ua raws li ITU-T G.984 tus qauv, nws txhawb cov ntaub ntawv tus nqi ntawm 1.25Gbps ntws thiab 2.5Gbps nqes. Nrog rau qhov tseeb GPON thev naus laus zis, cov neeg siv tuaj yeem txaus siab rau kev siv bandwidth- cov kev pabcuam multimedia ntau yam xws li lub sijhawm tiag tiag, thiab kev ua si yooj yim dua thiab sai dua li yav dhau los.

4. Dual -band Wireless

DGP-C2711TR, no gpon wi-fi modem muaj ob lub xov tooj cua wireless rau kev txhawb nqa ntawm 2.4GHz thiab 5GHz wireless xov tooj cua bands. Ib lub diplexer sab hauv ua rau ob lub xov tooj cua sib koom ib khub ntawm wireless kav hlau txais xov. Nws muaj peev xwm txhawb nqa ob hom Access Point thiab chaw nres tsheb hom concurrently yog tias xav tau.

Parameter

Kev piav qhia	Wi-Fi5 GPON Modem Router
Wireless ceev	2.4 GHz 300 Mbps 5.8GHz 866Mbps
Txuj	802.11a/b/g/n/ac
Ntau zaus	2.4GHz & 5.8GHz
Fais fab kis (Max)	2.4GHz: 22dbm 5.8GHz: 20dbm
Interface	1GPON+1GE ETH WAN+4GE LAN+1VOIP+1*USB
Kav hlau txais xov	4 * 5dbi kho
WAN hom	DHCP/Static/PPPOE/L2TP/PPTP
Yooj yim MESH	yog
TIAB SA 069	yog
IPV4/IPV6	yog
Advanced Functions	802.1Q VLAN/DHCP xaiv (43/60/121) Bandwidth Control /Access Control/Port Forwarding/DDNS/DMZ/Parent Control /Black List/MAC Lim/IP lim/URL Lim/QOS/Anti-DOS nres

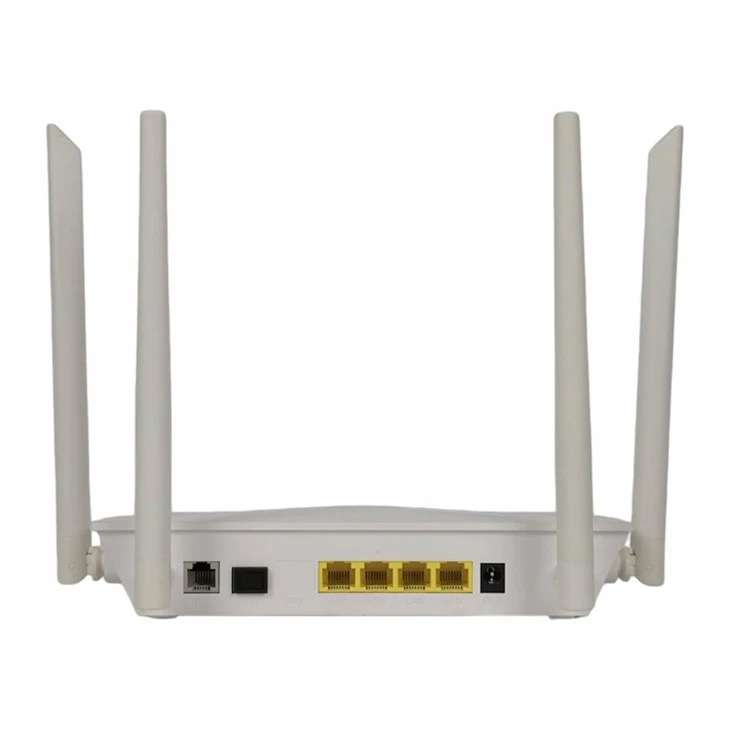

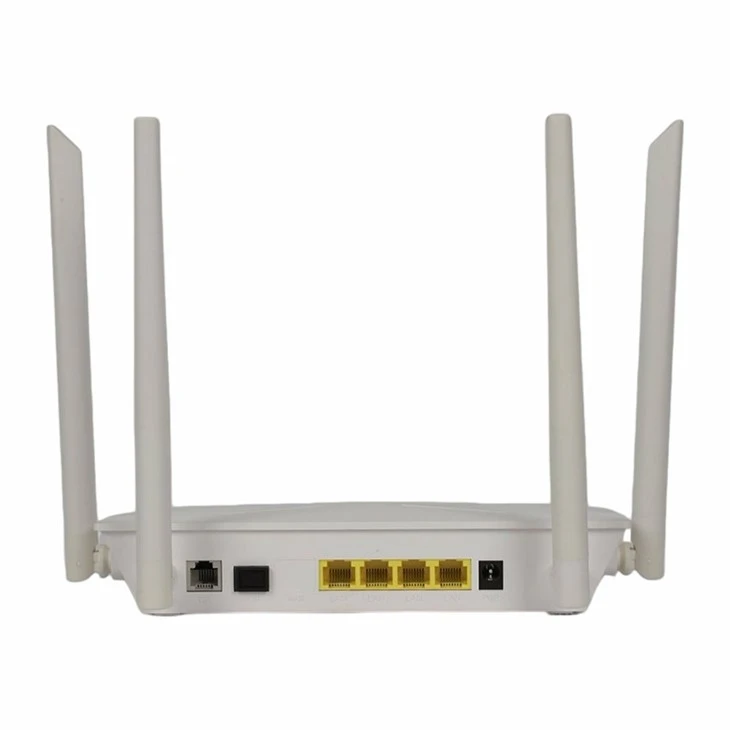

Interface	1 * GPON WAN chaw nres nkoj (SC / APC hom) 4 * 10/100/1000Mbps RJ-45 LAN chaw nres nkoj
Khawm	Fais fab ON/OFF WPS Rov pib dua WLAN

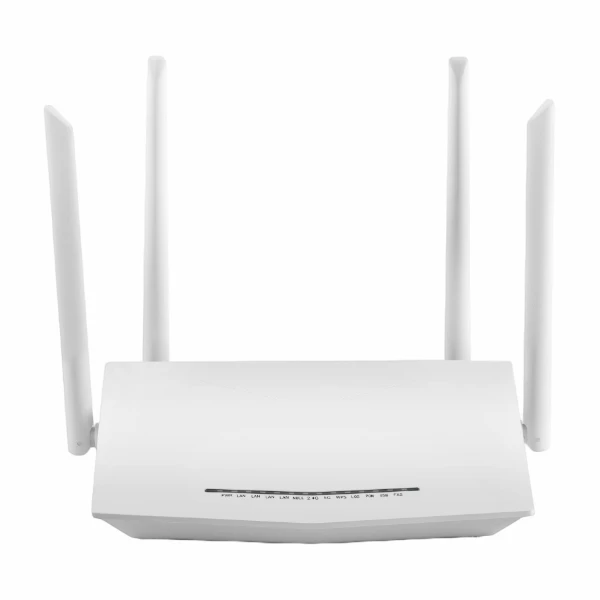

LEDs	Fais fab, PON, ALM, Internet, LAN, WLAN, WPS
Kav hlau txais xov	4 * 5dbi antennas sab nraud
GPON nta	ITU-T G.984.x ua raws Mus txog 20Km nrug Upstream: 1.25Gbps, Hauv qab: 2.5Gbps Forward yuam kev kho (FEC) Ntau T-CONTs/GEM ports rau ib lub cuab yeej Daim ntawv qhia yooj yim ntawm GEM chaw nres nkoj thiab T-CONT Qhov tseem ceeb queues thiab teem caij rau Upstream Ua kom muaj qhov tsis siv neeg pom Serial Number thiab password Tuag Gasp
Wi-Fi	Zaus: 2.4 GHz, 5 GHz IEEE 802.11a/n/ac Wi-Fi @ 5GHz (2x2) IEEE 802.11b/g/n Wi-Fi @ 2.4GHz (2x2) WEP/WPA/WPA2 Kev Ruaj Ntseg
Kev sib koom tes	PPPOE / Choj / DHCP / Static IP WAN hom IPv4 / IPv6 Dual Stack NAT Chaw nres nkoj xa mus UPnP IGD nrog NAT traversal muaj peev xwm Static routing Dynamic DNS relay DHCP neeg siv / server IGMP thiab MLD snooping/proxy L2TP neeg siv
QoS	Kev faib cov pob ntawv yooj yim Mus txog yim kab Wi-Fi Multimedia (WMM)
Kev ruaj ntseg	Stateful Packet Inspection (SPI) Kev Tiv Thaiv Tsis Muaj Kev Pabcuam (DoS). Ntau VPN (IPSec, PPTP, L2TP) hla dhau IP filtering
Kev tswj hwm	Web raws GUI Localization kev txhawb nqa Embedded web server Command Line Interface ntawm serial chaw nres nkoj, telnet, lossis ssh Ntawv qhia zaub mov-tsav CLI ntawm qhov chaw nres nkoj serial lossis telnet WAN Management raws tu qauv (TR-069) ITU_T 984.4 ua raws OMCI interface ONT kev pab cuam (ntawm OLT-sab) SNMP v1/v2 Hnub / sijhawm hloov tshiab los ntawm SNTP Internet Time Server
Cov yam ntxwv ntawm lub cev	Net nyhav: 300g Qhov Loj (L * W * H): 200x140x33 mm
Hwj chim	Tawm tswv yim: 100 ~ 240V Tawm tswv yim: 12V / 1.0A
Ib puag ncig Yam ntxwv	Ua haujlwm kub: 0 ° C ~ 40 ° C (32 ° F ~ 104 ° F) Humidity: 5% ~ 95% (tsis yog -condensing)
Daim ntawv pov thawj	CE FCC

FAQ

Q: Vim li cas tag nrho cov ntsuas tau muab tua?

Teb: Xyuas cov ntsiab lus hauv qab no:
● Kev sib txuas ntawm lub hwj chim adapter thiab lub qhov hluav taws xob.
● Cov xwm txheej ntawm lub hwj chim hloov.

Q: Vim li cas LAN qhov taw qhia teeb tawm?

Teb: Xyuas cov ntsiab lus hauv qab no:
● Kev sib txuas ntawm lub router thiab koj lub computer, hub, lossis hloov.
● Cov xwm txheej ua haujlwm ntawm PC, hub, lossis hloov.
