Nta

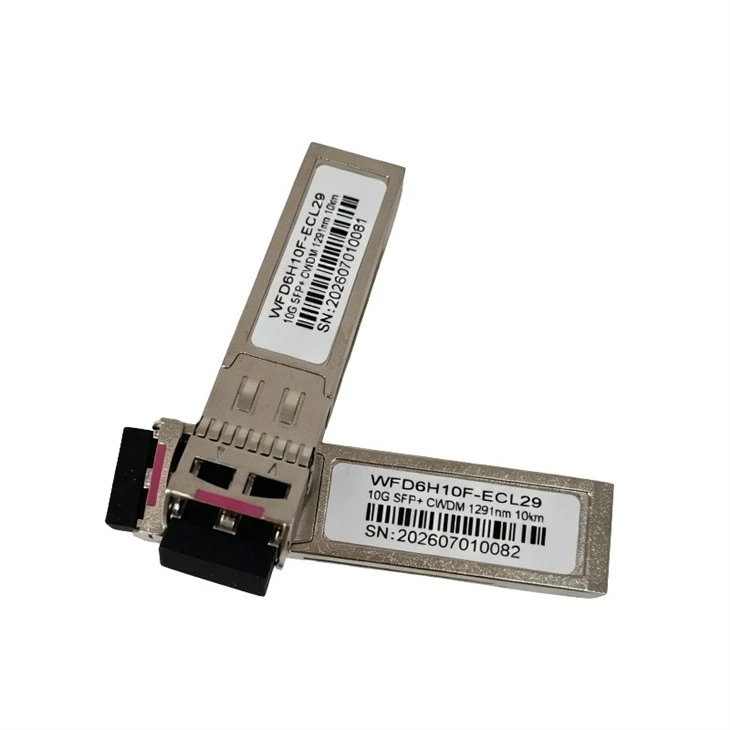

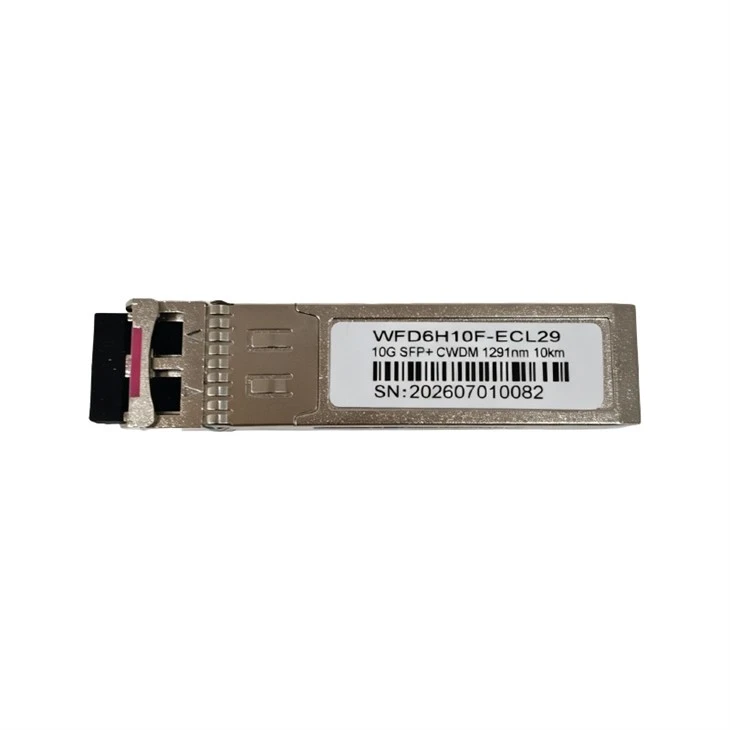

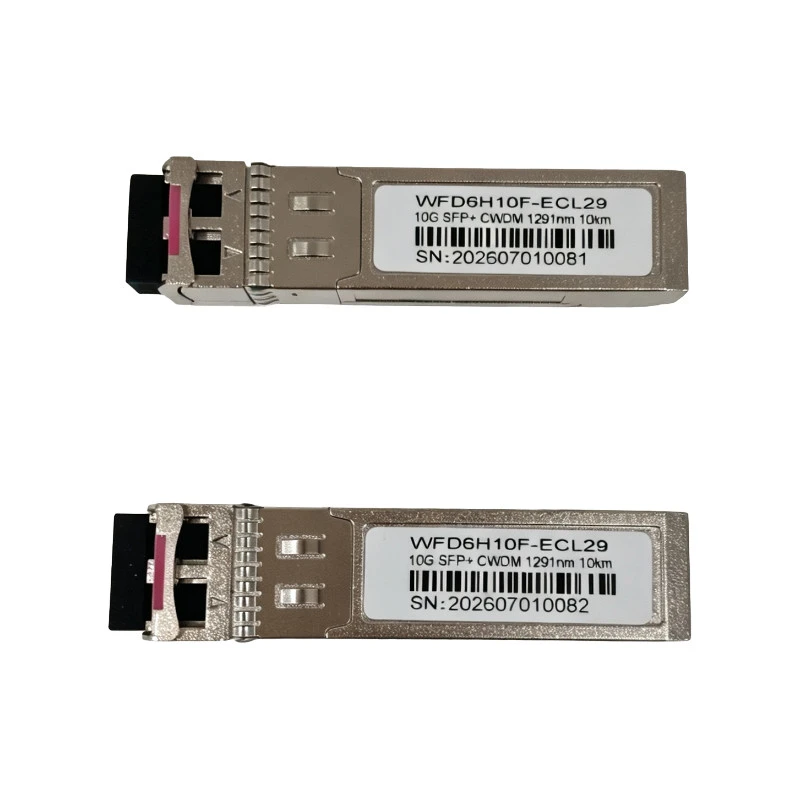

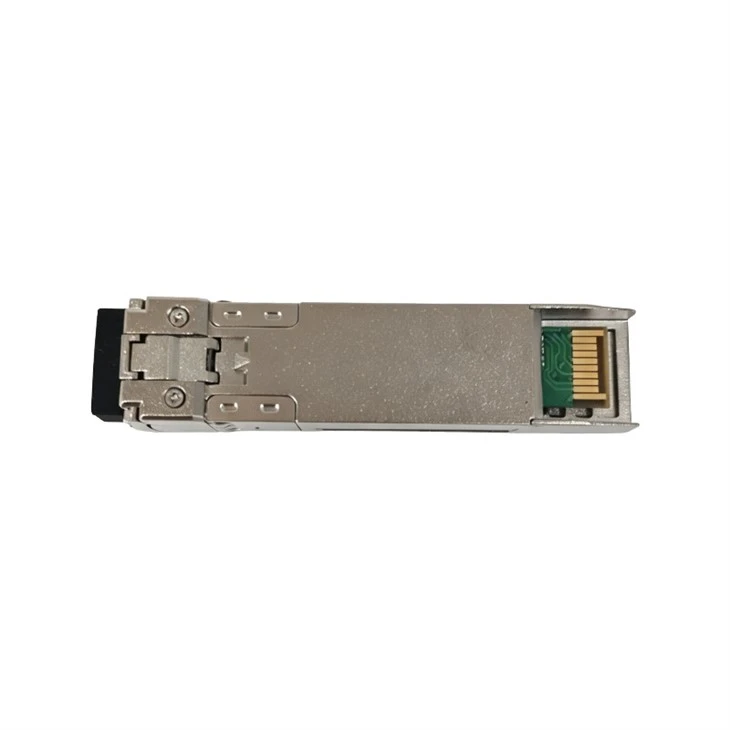

WFD6H10F-ECL29
10G CWDM SFP+ 10km LC SMF transceiver ua raws li Daim Ntawv Me- Factor Pluggable (SFP+) Multi-Source Agreement (MSA) thiab SFF-8472. Lub Digital Diagnostic Monitoring ua haujlwm raws li tau piav qhia hauv SFF-8472 yog muab los ntawm I2C serial interface.
WFD6H10F-ECL29 muab cov ntaub ntawv kuaj mob digital ntawm nws cov kev ua haujlwm thiab cov xwm txheej, suav nrog kev xa hluav taws xob, laser kev tsis ncaj ncees, txais cov khoom siv hluav taws xob kho qhov muag, qhov ntsuas kub, thiab cov khoom siv hluav taws xob. Calibration thiab tswb / ceeb toom pib cov ntaub ntawv raug sau thiab khaws cia hauv lub cim xeeb sab hauv (EEPROM). Daim ntawv qhia nco yog sib xws nrog SFF-8472, raws li qhia hauv qab no. Cov ntaub ntawv kuaj mob yog raw A/D qhov tseem ceeb thiab yuav tsum tau hloov mus rau hauv lub ntiaj teb tiag tiag units siv calibration tas li khaws cia nyob rau hauv EEPROM qhov chaw 56 - 95 nyob rau hauv A2h.
Nta 18-wavelength CWDM DFB laser npog 1270nm rau 1610nm hauv 20nm cov kauj ruam, muab ntau txoj kev xaiv rau koj kom haum koj lub network teeb. Qhov dav ntawm wavelengths no tso cai rau koj khiav ntau txoj hauv kev hla tib lub fiber ntau, ua rau feem ntau ntawm koj cov cabling uas twb muaj lawm. Tus PIN photodiode receiver ua haujlwm nrog lub laser kom koj cov teeb liab meej thiab muaj zog. Nrog rau qhov kev tsim qauv yooj yim no, koj tuaj yeem nthuav koj lub network yooj yim yam tsis muaj fiber ntau ntxiv.
Lub 10G CWDM SFP+ 10km LC SMF transceiver muab cov ntaub ntawv tshawb fawb tiag - lub sijhawm kuaj xyuas los ntawm tus qauv 2-xaim interface, yog li koj ib txwm paub tias koj lub module ua haujlwm li cas. Koj tuaj yeem yooj yim taug qab qhov tseem ceeb tsis xws li qhov kub, qhov hluav taws xob, thiab lub zog kho qhov muag los ntawm koj lub console tswj. Qhov kev tawm tswv yim nyob no yuav pab koj ntes cov teeb meem ua ntej lawv ua rau poob qis. Nrog rau qhov kev soj ntsuam ntse no, koj tuaj yeem ua kom koj lub network noj qab haus huv thiab zam kev cuam tshuam tsis txaus ntseeg.
Lub 10G CWDM SFP+ 10km LC SMF transceiver ua tau raws li SFP + MSA thiab SFF-8472 tus qauv, cov qauv no ua haujlwm nrog ntau yam khoom siv sib txuas los ntawm ntau hom. Koj tsis tas yuav txhawj xeeb txog seb nws puas yuav haum lossis ua haujlwm zoo hauv koj qhov teeb tsa uas twb muaj lawm. Qhov kev tsim qauv qhib no ua rau koj muaj kev ywj pheej xaiv cov khoom siv zoo tshaj plaws rau koj cov kev xav tau yam tsis tau muab xauv rau hauv ib tus neeg muag khoom. Tsuas ntsaws rau hauv thiab nws yuav ua tau zoo, txuag koj lub sij hawm thiab txo kev koom ua ke mob taub hau.
Parameter
|
Qhov siab tshaj qhov ntsuas |
|||||||||||||||
|
Parameter |
Cim |
Min. |
Max. |
Chav tsev |
Nco tseg |
||||||||||
|
Cia kub |
Tst |
-40 |
85 |
degree |
|||||||||||
|
Input voltage |
Vin |
GND |
Vcc |
V |
|||||||||||
|
Fais fab mov Voltage |
Vcc-Vee |
-0.5 |
+3.6 |
V |
|||||||||||
|
Pom zoo ua hauj lwm tej yam kev mob |
|||||||||||||||
|
Parameter |
Cim |
Min. |
Hom |
Max. |
Chav tsev |
Nco tseg |
|||||||||
|
Fais fab mov Voltage |
Vcc |
3.135 |
3.3 |
3.465 |
V |
- |
|||||||||
|
Kev khiav hauj lwm Case Temperature |
Tc |
-5 |
- |
70 |
degree |
- |
|||||||||
|
Cov ntaub ntawv tus nqi |
DR |
- |
10.3125 |
11.3 |
Gbps |
- |
|||||||||
|
Total Supply Tam sim no |
- |
- |
- |
350 |
mA |
- |
|||||||||
|
Hluav taws xob-Optical Specification |
|||||||||||||||
|
Transmitter |
|||||||||||||||
|
Parameter |
Cim |
Min. |
Ntaus. |
Max. |
Chav tsev |
Nco tseg |
|||||||||
|
Optical Central Wavelength |
l |
npo-6.5 |
ua lp |
lp +6.5 |
nm |
1 |
|||||||||
|
Optical Spectral Dav (-20dB) |
Dl |
1 |
nm |
||||||||||||
|
Sab Hom Txhaum Cai |
SMSR |
30 |
dB |
||||||||||||
|
Nruab Nrab Optical Output Power |
Po |
-3 |
+2 |
dBm ib |
2 |
||||||||||
|
Extinction Ratio |
Er |
4 |
dB |
||||||||||||
|
Nruab Nrab Fais Fab ntawm Disable Transmitter |
-45 |
dBm ib |
|||||||||||||
|
Kwv tij siv suab nrov |
RIN |
-128 |
dB/Hz |
||||||||||||
|
Optical rov poob siab kam rau ua |
-12 |
dB |
|||||||||||||
|
Tso zis qhov muag |
Ua raws li IEEE 802.3ae |
3 |
|||||||||||||
|
Optical - Hluav taws xob Specification |
|||||||||||||||
|
Tus txais |
|||||||||||||||
|
Parameter |
Cim |
Min. |
Ntaus. |
Max. |
Chav tsev |
Nco tseg |
|||||||||
|
Ua haujlwm Wavelength |
l |
1260 |
1620 |
nm |
|||||||||||
|
rhiab heev |
Pr |
-14 |
dBm ib |
4 |
|||||||||||
|
Saturation |
Ps |
0.5 |
dBm ib |
4 |
|||||||||||
|
LOS De- qhia Level |
-15 |
dBm ib |
|||||||||||||
|
LOS Assert Level |
-30 |
dBm ib |
|||||||||||||
|
LOS Hysteresis |
0.5 |
5.0 |
dB |
||||||||||||
Nco tseg:
1. λp =Peak wavelength (1271, 1291, 1311, 1331, 1331, 1351, 1371, 1391, 1411, 1431, 1451, 1471, 1471, 1491, 15711, 15711, 1591, 1611) ib.
2. Lub hwj chim kho qhov muag yog Coupled rau hauv SMF.
3. Ntsuas nrog PRBS 231-1 xeem qauv @10.3125Gbps.
4. Ntsuas nrog PRBS 231-1 tus qauv sim @ 10.3125Gbps, BER Tsawg dua lossis sib npaug rau 1 × 10-12 thiab suav nrog rov qab mus rau sab nraud.
|
Cov yam ntxwv hluav taws xob |
|||||||
|
Parameter |
Cim |
Min. |
Hom |
Max. |
Chav tsev |
Nco tseg |
|
|
SDA / SCL |
VH |
2 |
Vcc |
V |
|||
|
VL |
0 |
0.8 |
V |
||||
|
Transmitter |
|||||||
|
Input Differential Impedance |
Zin |
90 |
100 |
110 |
Ω |
- |
|
|
Data Input Swing Differential |
Vin |
200 |
1000 |
mV |
|||
|
TX Disable |
Disable |
2.0 |
Vcc |
V |
|||
|
Pab |
0 |
0.8 |
V |
||||
|
TX Fault |
txhaum |
2.0 |
Vcc |
V |
|||
|
Ib txwm |
0 |
0.8 |
V |
||||
|
Tus txais |
|||||||
|
Cov zis sib txawv impedance |
Zout |
90 |
100 |
110 |
Ω |
||
|
Data Output Swing Differential |
Vout |
300 |
1000 |
mV |
|||
|
LOS |
Siab |
2.0 |
Vcc |
V |
|||
|
Tsawg |
0 |
0.8 |
V |
||||
Diagnostic Monitor Qhov tseeb
|
Parameter |
Chav tsev |
Qhov tseeb |
Ntau yam |
Calibration |
|
Tx Optical Power |
dB |
±3 |
Po: -Pomin~Pomax dBm, pom zoo ua haujlwm |
Sab hauv |
|
Rx Optical zog |
dB |
±3 |
Pi: Ps ~ Pr dBm, pom zoo ua haujlwm |
Sab hauv |
|
Bias Tam sim no |
% |
±10 |
ID: 1-100mA, pom zoo ua haujlwm |
Sab hauv |
|
Fais fab mov Voltage |
% |
±3 |
Pom zoo ua hauj lwm tej yam kev mob |
Sab hauv |
|
Sab hauv kub |
degree |
±3 |
Pom zoo ua hauj lwm tej yam kev mob |
Sab hauv |
Cov ntaub ntawv xaj
|
Tshooj Naj Npawb |
Product Description |
|
WFD6H10F-ECL27 |
CWDM 1271 DFB, 10Gbps, LC, 10km, -5℃~ +70 degree, nrog DDM |
|
WFD6H10F-ECL29 |
CWDM 1291 DFB, 10Gbps, LC, 10km, -5℃~ +70 degree, nrog DDM |
|
WFD6H10F-ECL31 |
CWDM 1311 DFB, 10Gbps, LC, 10km, -5℃~ +70 degree, nrog DDM |
|
WFD6H10F-ECL33 |
CWDM 1331 DFB, 10Gbps, LC, 10km, -5℃~ +70 degree, nrog DDM |
|
WFD6H10F-ECL35 |
CWDM 1351 DFB, 10Gbps, LC, 10km, -5℃~ +70 degree, nrog DDM |
|
WFD6H10F-ECL37 |
CWDM 1371 DFB, 10Gbps, LC, 10km, -5℃~ +70 degree, nrog DDM |
|
WFD6H10F-ECL39 |
CWDM 1391 DFB, 10Gbps, LC, 10km, -5℃~ +70 degree, nrog DDM |
|
WFD6H10F-ECL41 |
CWDM 1411 DFB, 10Gbps, LC, 10km, -5℃~ +70 degree, nrog DDM |
|
WFD6H10F-ECL43 |
CWDM 1431 DFB, 10Gbps, LC, 10km, -5℃~ +70 degree, nrog DDM |
|
WFD6H10F-ECL45 |
CWDM 1451 DFB, 10Gbps, LC, 10km, -5℃~ +70 degree, nrog DDM |
|
WFD6H10F-ECL47 |
CWDM 1471 DFB, 10Gbps, LC, 10km, -5℃~ +70 degree, nrog DDM |
|
WFD6H10F-ECL49 |
CWDM 1491 DFB, 10Gbps, LC, 10km, -5℃~ +70 degree, nrog DDM |
|
WFD6H10F-ECL51 |
CWDM 1511 DFB, 10Gbps, LC, 10km, -5℃~ +70 degree, nrog DDM |
|
WFD6H10F-ECL53 |
CWDM 1531 DFB, 10Gbps, LC, 10km, -5℃~ +70 degree, nrog DDM |
|
WFD6H10F-ECL55 |
CWDM 1551 DFB, 10Gbps, LC, 10km, -5℃~ +70 degree, nrog DDM |
|
WFD6H10F-ECL57 |
CWDM 1571 DFB, 10Gbps, LC, 10km, -5℃~ +70 degree, nrog DDM |
|
WFD6H10F-ECL59 |
CWDM 1591 DFB, 10Gbps, LC, 10km, -5℃~ +70 degree, nrog DDM |
|
WFD6H10F-ECL61 |
CWDM 1611 DFB, 10Gbps, LC, 10km, -5℃~ +70 degree, nrog DDM |
